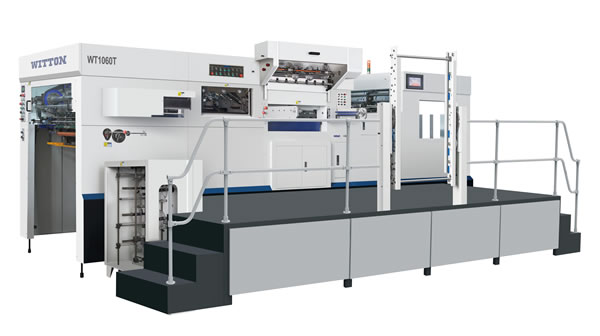

WT1060T fully automatic flat die cutting and hot stamping machine


★ Using high-end imported feeders, it has high paper feeding accuracy, good stability, durability, quick adjustment, and is suitable for both thick and thin paper.
★ The paper-feeding wallboard is made of castings, which has good stability and is suitable for high speed.
★The overall adjustment structure of the paper feeding table flip frame: accurate, fast and stable.
★The paper feeding table is made of imported high-end patterned stainless steel plate, which is beautiful and durable, and has low paper feeding resistance and smoother flow.
★Imported thin paper conveying belt, strong and durable.
★The front and rear transmission wheels and shafts of the main chain of the tooth row are strengthened and enlarged to ensure rigid, high-speed and stable operation.
★ The paper pressing brush of the paper delivery part is externally equipped with an all-round adjustment mechanism, which facilitates and effectively adjusts the paper delivery structure.
★The paper delivery and blowing control system ensures that the thin paper can be effectively collected at high speed.
★Servo controlled ball screw automatic pressure regulating device.
★Dual oil circuit system ensures safe oil supply.
★Main key electrical configuration upgrades.
★Main key bearing upgrade.
★Adopts a new external cover.
★ Optional synchronous belt for main transmission (vertical intermittent) and overload torque controller.
★ Non-stop paper feeding, precoded paper pile and auxiliary paper delivery mechanism, shortening auxiliary time and improving work efficiency.
★Die-cutting plate frame and bottom plate mechanism, humanized design, fast and convenient to install and adjust plates. (Optional pre-installed replica rack)
★Front gauge, side gauge and paper feeder fine-tuning device make paper positioning more accurate.
★ Photoelectric level control of double sheets, crooked sheets and empty sheets to ensure accurate and stable paper and reduce waste.
★Touch screen human-machine interface, real-time dynamic monitoring and display of operating status, making machine adjustment and troubleshooting convenient and fast.
★The hot stamping function applies an imported servo control system to achieve accurate placement and collection of aluminum foil vertically and horizontally.
★Input data through the industrial tablet touch screen and realize automatic optimization programming by skipping steps, greatly saving anodized aluminum foil. (Upgraded to the second generation intelligent cloud step simulation full computer conversion)
★The temperature control system is divided into twelve heating zones, which can independently set the temperature and control the constant temperature.
★Circulating cooling oil supply system ensures that the main moving parts of the machine are well lubricated and durable.
★Timing and quantitative oil supply system ensures that other moving parts of the machine are fully lubricated and has a long service life.
