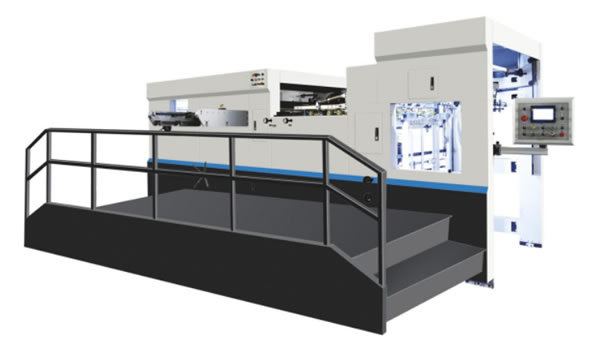

WT1300S/WT1300SC manual automatic flattening (waste removal) die cutting machine

★ Perfect design, fine assembly, good stability, strong safety and low noise.
★ High-strength gripping tooth row and advanced open-grip gripping mechanism can adapt to various types of corrugated cardboard. The front and rear positioning and side positioning mechanisms ensure the die-cutting accuracy of the paper.
★ The worm gear and the specially designed crankshaft connecting rod mechanism are connected in the form of bearings to reduce motion barriers, avoid worm gear impact, operate smoothly, have high die-cutting pressure, and have a high-point pressure-holding function. The worm gear is extremely wear-resistant. Made of good aluminum bronze, long service life.
★ Non-stop paper feeding, precoded paper pile and auxiliary paper delivery mechanism, shortening auxiliary time and improving work efficiency.
★ Adopt domestic advanced three-dimensional cam indexing mechanism, pressure regulating device, pneumatic plate locking, pneumatic sampling, and overload protection device. It adopts imported high-precision chain transmission.
★ The paper feeding adopts manual and automatic paper feeding method (Feida automatic paper feeding and formal paper feeding), and the application of secondary positioning mechanism reduces the requirements for paper. During work, workers' hands should be kept away from the die-cutting part of the machine to ensure workers' work safety.
★ The pneumatic plate locking mechanism can make plate changing and padding more flexible and convenient, and the plate frame fixing is more firm, accurate and time-saving.
★Programmable controller and human-machine interface, digital display of the machine's working speed, number of processed sheets, total running time, and machine fault display make troubleshooting operations very convenient. Realize automatic control and real-time monitoring of paper feeding, die-cutting, and paper delivery parts, and cooperate with safety devices in each part to ensure safe operation.
Fully reliable, machine adjustment and troubleshooting are quick and easy.
★ The automatic paper collecting and neatening device makes paper collecting convenient and neat.
★The suspension function of the die-cut steel plate allows the steel plate to be easily pushed in and out.
★Photoelectric level control of double sheets, crooked sheets and empty sheets to ensure accurate and stable paper and reduce waste.
★Electrical control modular design, using imported electrical components to ensure precise control and good reliability.
★ Circulating cooling oil supply system ensures that the moving parts of the machine are well lubricated and durable.
★The combined separation is stable and reliable, the braking angle is small, and large torque can be transmitted.
★The die-cutting pressure can be adjusted independently before and after, and manual turning is convenient and labor-saving.
★Timing and quantitative oil supply system ensures that other moving parts of the machine are fully lubricated and has a long service life.
★ High-precision gap mechanism, high die-cutting accuracy and smooth operation.
★(Optional) Three-frame linkage mechanism for waste removal function, humanized design, fast and convenient to install and adjust the waste removal plate.
★(Optional) The automatic waste removal device can easily remove the waste paper edge of the product (except the bite edge).
